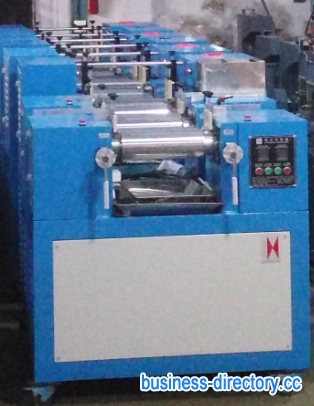

ZG-4 inch small oil heating mill

1. Mixed capacity: 0.1-1.8kgs

2. Roller temperature: normal temperature ~ 300 ° C

3. Heating method: oil heating (latest process design, patented product, automatic constant temperature and precision)

4. Temperature accuracy: ±2°C (The thermostat adopts high-precision P I D intelligent microcomputer control system, internal constant automatic calculation function, higher precision than manual setting, saves time. With over-temperature alarm function, protects machinery and production materials)

5. Roller speed: fixed speed 19 turns or so can be added frequency conversion speed other speed free custom

6. Roller speed ratio: 1:1.35 other speed ratio can be customized according to customer needs

7. Roller size: ф110mm×L 350mm (high hardness table mirror finish, non-stick, no delamination)

8. Roller spacing: 0.1 ~ 6mm adjustable

9. Safety device: Multiple bumper emergency stop (with reverse function safety First, humanized design, the operator will always be safe and free of work injuries)

10.Mada: 1.5KW1 set (the latest process design, mechanical structure adjustment, and the traditional process mechanical transmission 3.7KW output torque is as large, to achieve the purpose of energy saving)

11. Power: 9KW

12. Volume: (W × D × H) 1100 × 550 × 1380mm In the case of the same function, the volume is smaller than the traditional process. 13. Roller lubrication: the contact area of the excellent wear-resistant bearing is much longer than the traditional copper sleeve. 2 times of service life

14. Mechanical structure: steel plate (lighter than the traditional process cast iron, small mechanical strength, higher toughness)

15. Power supply 5∮, AC380V, 10A

16. Weight about 360kg
