Brand:Xihua
Mini Order:1Set
Supply:15Set
Model No.: XH-011
Function

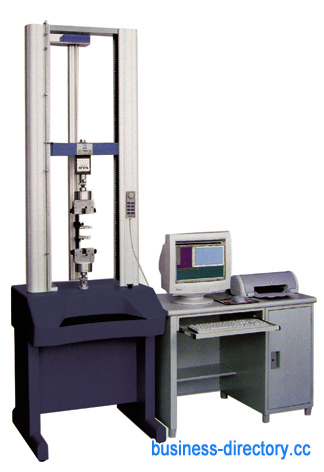

The tensile tester is used for mechanical performance testing,analysis and research to various kinds of metal ,non-metal and composite materials,which can be widely applied in aerospace,machine,wire & cable,textile,plastic & rubber,ceramics,paper packaging,geotextile,film,timber,metal materials and products. The maximum testing force value,fracture force value and yield strength can be automatically calculated according to the requirements of GB,JIS,ASTM,DIN,ISO,etc.
Specification
Measuring range: 0-3000KG(optional),10 levels
Force resolution: 50% of full scale
Load precision: about 1% of the indicated value
Max stroke: 800mm
Speed precision: about 1% of the indicated value
Test speed: 1-500mm/min
Displacement precision: about 1% of the indicated value
Effective testing width: 400mm
Motor: imported AC servo motor
Volume: 680 X 500 X 2250mm
Weight: 200kg
Power supply: 1Φ , 220V , 750W
Features
• The entire process is controlled by computer,and the machine can automatically save and analyze related data and print report curve
• The measuring precision is about 0.5% of the indicated value
• Flexible interface and controlling mode can conduct various tests including pulling,pressing,belting,cutting,stripping,tearing,puncturing,bursting and friction tests
• Modular design is available to expand its functions
• The seven levels of the measuring range can support 0.2%-100% of the sensor with full load
• Built-in type and external type of the control measurement unit are available.The Built-in type features simple appearance and space saving,and the external one is convenient for upgrading,maintenance and operation without the computer
• A variety of protection methods guarantee the safety and stability of operation
• High-speed sampling(100 times/second) makes the testing data much more accurate
