Brand:Xihua
Mini Order:1Set
Supply:15Set

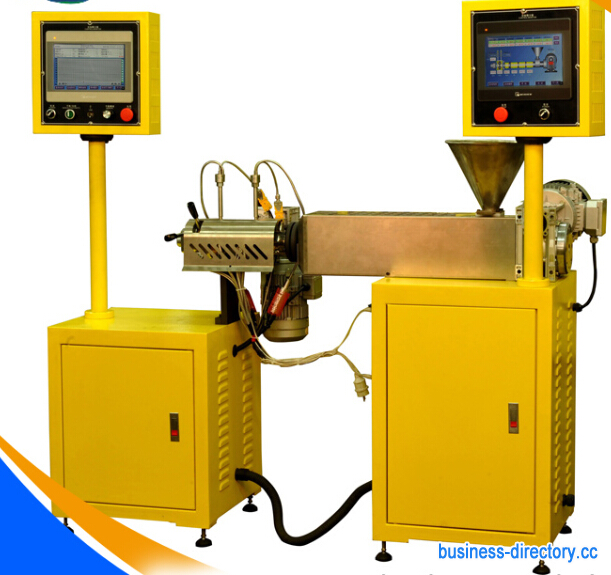

Model No.: XH-431
Function:This machine use Filtration pressure to test Pigments、Masterbatch’s Polymer of dispersion. Dedicated data acquisition and display system to automatically analyze and calculate the value of the filter press. Test results are automatically print out , intuitive interface, accurate data.
Include standards；DIN EN-13900-5：2005
Technical Parameters
Ø Diameter of screw: 20. (you can choose 25. 30. Or other diameter)
Ø Speed of screw: 0-120rpm. frequency adjust speed
Ø L/D: 1：25. Other L/D(10-30) can choose
Ø Screw materials:38CrMoAI Special chrome molybdenum alloy tool steel surface treatment: Quenched Nitride chrome, polished and ultra-fine honing etc. Roughness Ra ≤ 0.4μm, the nitride layer is trying to achieve ≥ 0.6mm, hardness HRC55 ~ 60
Ø Barrel materials: 38CrMoAI Special chrome molybdenum alloy tool steel surface treatment: Quenched Nitride chrome, polished and ultra-fine honing etc. Roughness Ra ≤ 0.4μm, the nitride layer is trying to achieve ≥ 0.6mm, hardness HRC55 ~ 60
Ø Heating : Barrel have 3 MICA heater. Machine head have 3 area heating,Each area with copper heat sink, covered with stainless steel safety nets
Ø Cooling : 4 sets multiplane Ultra-quiet fan forced air
Ø Temperature of melt:High precision Material Temperature sensor to monitoring the Melt temperature changes
Ø Press of the meltr: 0-35Mpa high precision pressure temperature sensor to monitoring machine head melt pressure .Interlocking joint control host running
Ø strainer: 5-40um
Ø Driven motor: High Precision Gear Motor
Ø Electrical control system: PID/LED/RKC Intelligent display temperature control .high precision .Digital instrument display all extrusion parameters, including temperature control, driver, pressure, interlocking joint control function
Ø Power Supply: 3∮，AC380V. 50HZ
Ø Approximate Volume (W*D*H): 1250×550×1350mm.not include Electric control box
Ø Weight: about 320kg
Remark: can choose.
1. melt pump mode( need 5 months).
2 . Drive motor.
3.Electrical brand
