Brand:Xihua
Mini Order:1Set
Supply:20Set
deliver goods:Within 60 days
Model No.: XH-406B

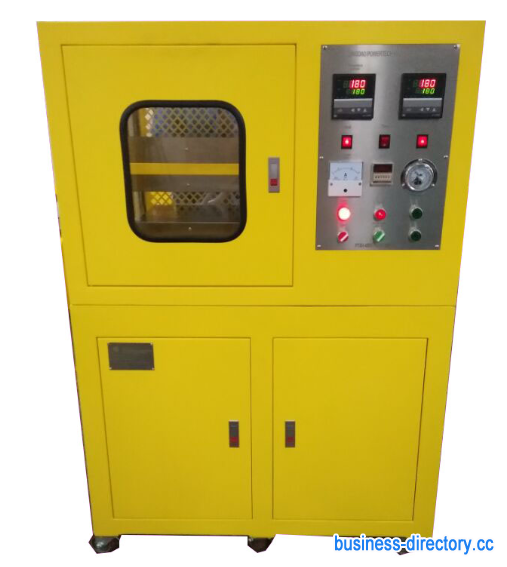

This machine is applicable to R & D in laboratory.Put the raw materials into the mold between the electric boards and set up certain pressure and temperature.The raw materials are formed into test specimen for test use.This machine features compact size,complete functions,stable temperature,low noise,easy operation and material saving.
• High-performance oil hydraulic system with automatic pressure compensation function can preset the time and pressure between two pressure increase and automatically conduct pressurization and depressurization supplemented with high-precision cylinder.
•High-precision and abrasion-resistance guide pillar features strong loading force and stable lifting.
•imported KDB electric board features high-temperature resistance,abrasion resistance,fast thermal transmission and strength against deformation.
•High-precision temperature sensor,together with LED temperature controller,built-in dense-point heating wire and tubular condenser,has the temperature range from normal temperature to 300°C.
•Single heating can be designed according to the requirements.
•Oil hydraulic system:the pressure range:100 ton,the maximum stroke of the cylinder:140mm.
Ø Capacity:30 ton
Ø Pressure: 0 to 30 ton (adjustable)
Ø Area of electric board: 300mm X300mm
Ø Plate spacing:0-90mm
Ø Timepiece:LED 0-99(min)
Ø Heating mode:electrical heating
Ø Cooling mode: running water cooling system
Ø Certificate:CE Certificate
Ø Heater: Taiwan Taizhan heater
Ø Working layer: two layer(one heating and another cooling)
Ø Temperature range:room temper to 300°C
Ø Temperature control mode:LED temperature controller
Ø Temperature precision:±2°C
Ø Outside volume (WxDxH）:1000 x 600 X 1500mm
Ø Power supply:3Ø,AC380V,20A
Ø Weight:about 1000kg
Main configuration:
RKC temperature controller (Japan);
Temperature sensor (Japan);
Omron relay (Japan);
Shilin contactor (Taiwan);
Yangming SSR (Taiwan);
CKC timer (Taiwan);
Taiwan Taizhan heating tube;
Taida frequency converter,
Taiwan TonGXING hydrocylinder etc.
