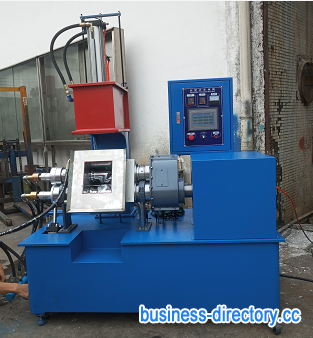

1. mixer chamber volume: 13L-15L

2. main motor: AC motor, power 37 kW.

3. reducer: the base and frame adopt low carbon steel welding structure, including forced lubrication circulation system.

4. Rotor: double-edged, synchronous rotor structure (also can be designed and manufactured according to the rotor structure drawings provided by the user), before and after the rotor speed ratio of 1:1.20 or ST synchronous rotor specific parameters can be customized according to customer needs free of charge, cast steel tempering and hardening treatment, surface hard chromium plating; bearing for ball-shaft roller bearings; bearing lubrication bath; rotor most High speed: 8L:36 RPM / RPM can be customized free of charge.

5. face wall: steel structure, drilling heating, hardened hard chrome plating inside.

6. bracket: steel structure, hardened hard chrome plating inside.

7. upper plug: cylinder driven, hard chrome plating on the surface.

8. face seal: seal ring material is high wear-resistant material, self-lubricating bearing, hinge spring top seal.

9. charging hopper: manual operation

10. control mode: Operation break up, semi-automatic.

The highest temperature of mixer is +10-- at normal temperature.

Mechanical body

11. the base frame is welded by profiled steel and steel plate.

12. the mixing tank is made of wear-resistant alloy steel.

The side wall is made of medium carbon steel welded.

13. use of alloy steel for mixing shaft and blade.

14. the bearing block is made of ZG20 steel, and roller bearings are used for bearings.

15. Feeding device This machine is designed as the front feeding device, the pressure can be adjusted according to the user specified valve.

16., the side of the stirring shaft of the leakproof device is forced by mechanical shaft seal, and the leakage prevention structure is awarded the national patent.

Pressurizing cover device

17. Pressure cap made of alloy steel, applied pressure on raw materials in the mixing operation, with the air cylinder for vertical up and down movements

Unloading device

18. hydraulic tilting unloading of structure mixing chamber

19. the maximum tilt angle is 110 to 135 degrees.

20. tilting power: hydraulic tipping bucket

Transmission structure

21. main motor 37KW AC voltage has 440V 415V 380V 220V 110V can be selected according to customer needs.

22. transmission mode: main motor and reducer are split drives.

piping

23. air compression piping, compressed air fittings (three point combination, solenoid valve) and mechanical body piping.

Main electrical control equipment

24. temperature setting: both automatic and manual.

25. there are prompt actions, various time settings, alarms, positive and negative reversals can be realized.

Advantage of machine platform

26. the main electrical components are imported brands, and the whole machine bearings are TWB brand.

27. the alloy steel is used for stirring shaft. It is easy to wear parts to add German Germany imported wear-resistant steel, which is more durable and durable.

28. Mixing trough "mountain" type, the main body of mixing trough is made of wear-resistant alloy steel, and the shearing part is surfacing and welding West Germany front steel.

The 29. side wall leak protection device adopts high-tech materials: the leakage prevention structure has won the national patent.

30. the "M" structure is used for the gland to make the mixture more uniform and more thorough.

31. volume: (W * D * H) 2250*1450*2300MM

32. weight: 3580KG
