Product Advantages: Small size, screw removal patented products 1 minute screw replacement, easy to clean, especially for a variety of colors when there is a clear clearance of residual material speed saving time and labor, the main engine, sink cooling, tractor, winder for one platform to achieve multi-purpose, you can choose one function or several functions, Flexible matching according to customer needs.

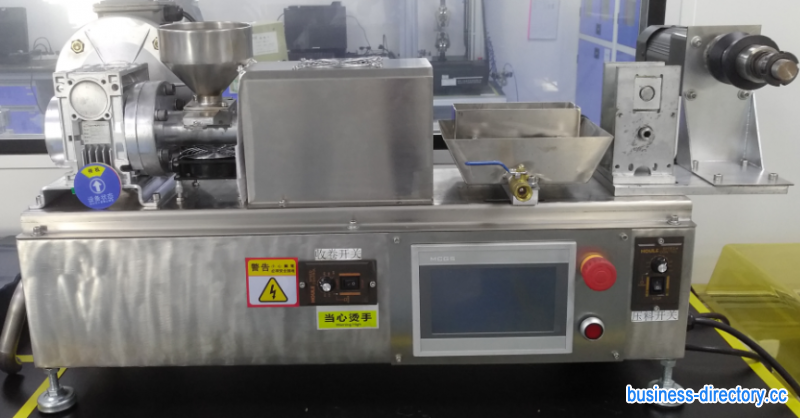

ZG -10 single screw extruder (PLC touch screen control)

(1) screw diameter: 10mm use material notes: alloy steel and stainless steel screw barrel according to customer's choice.

(2) length to diameter ratio: L/D=20:1 aspect ratio can be arbitrarily collocated according to customer needs.

(3) screw speed range: 15~65rpm (other speed free customization)

(4) single screw main engine adopts AC 0.75KW motor and frequency converter.

(5) Reducer: The gear and shaft parts are made of high strength alloy steel. The gear (shaft) is processed by carburizing, quenching and grinding. The precision of the gear is GB10095-88, grade 6, and the hardness of the tooth surface is HRC56-62 degrees.

(6) Single screw cylinder 38CrMoAlA nitrided steel overall nitriding, nitriding layer depth of 0.4-0.5mm, cylinder using special air-cooled equipment barrel, stainless steel resistance heater compatible section heating, barrel temperature control instrument, digital intelligent high precision, temperature measurement and control accuracy.

(7) The screw is nitrided with 38CrMoAlA nitrided steel with a depth of 0.4-0.5mm to ensure that the material has enough thrust and does not decompose.

(8) electrical control system

A) the main electrical control components are OMRON, Jinfeng, Germany.

B) the control button is German Jinfeng product.

C) heating is controlled by the touch screen temperature control system through solid state relay, using high temperature resistant conductor.

D) electrical control cabinet control includes: temperature control system, drive system and interlocking control system.
