Brand:Meidele
Mini Order:1Set
deliver goods:Within 7 days
Brand assurance: China metal separator leader! Patent holder!

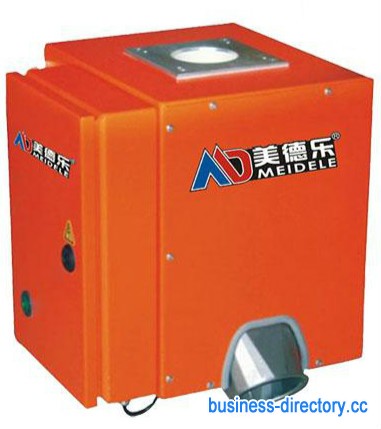

metal separator is the latest metal separator of our company and international synchronous technology, which can detect all metals.
The control system is seamless with foreign equipment and can detect all metal impurities, such as iron, copper, stainless steel, aluminum, etc.
Minimum metal 0.3mm, and can adjust the sensitivity according to actual production, microcomputer control, LED instruction.
Quick response, high accuracy. The small size of the machine, the use of the square, easy installation, can be directly installed on the equipment.
Used in food, plastic, packaging and other industries.
Detailed description
Controller parameter:
Control part: German imports or self-production
Start solenoid valve: Japan SMC (import)
Cylinder: Japan SMC (import)
Gas filter: Japan SMC
Shell material: baking sheet steel or 304 stainless steel
Working voltage: 220 volts ac (+ / -10%) (with voltage selection switch), 50/60 HZ
Input current: 80/160 ma fuse: 2 315 mah
Ambient temperature: -10/60 degree protection level: IP65
Input terminal: test button, manual separation, reset, compressed air monitoring
Output terminal: counting, metal detection
Machine parameters:
Compressed air: 4-8 kg, 6-8 mm hose connection
Usage: 0.4 liters per separate action
Protection level: IP54
Separation time: 0.2-2.5 seconds, 0-10 level - level adjustable detection accuracy
Equipment advantages:
Products with long fiber do not clog the discharge equipment.
It can avoid the disordered and product lumps (light and thin products) sanitary design, the discharge device is rustproof and waterproof
It can be avoided for a long time of product accumulation and clumps of mildew, by cleaning thin flakes can be quick and simple cleaning
Sensitivity table:
35MM300KG/HRFe:0.3mm sus:0.8mm
50MM800KG/HRFe:0.6mm sus:1.2mm
70MM1800KG/HRFe:0.8mm sus:1.5mm
We are waiting to serve you!
