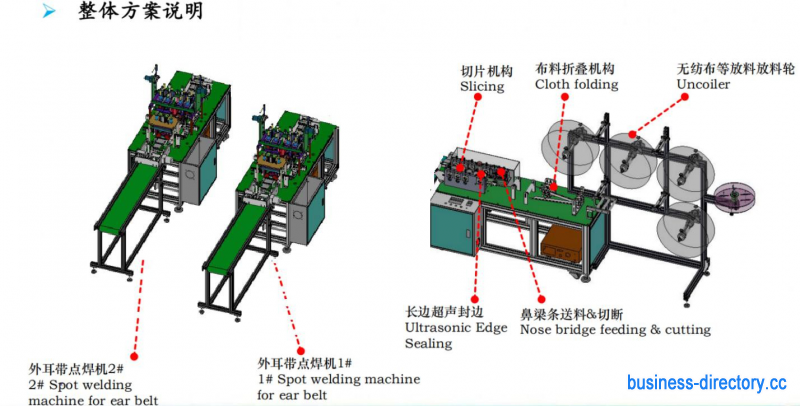

Large-Cloth folding unit
-Nose bridge feeding & cutting
-Ultrasonic Edge Sealing
Slitting unit
1.Semi-automatic Medical Face Mask Making Machine
Output 80-100pcs/min
Specifications 175mmx 95mm
Applicable materials pp non-woven composite fiber PP（25g）
Meltblown cloth
Nose bridge PP 5.0mm*0.55mrr； Earloop: round 2.5-3mm；
Layers of cloth 2-4 layers
Output / day 120,000 pcs / day
Machine weight : 1600 kg
Machine size : 6500*2200*1800mm
Machine Material: 100% Aluminum alloy
Control System: photoelectricity testing system
Compressed-Air: ≥0.5~0.6MPa
Operator : three persons
Welding for Ear loop: 20-40MHZ
Total electric consumption: 11 KW
Voltage: 220V/50Hz
Voltage tolerance: ±5%
