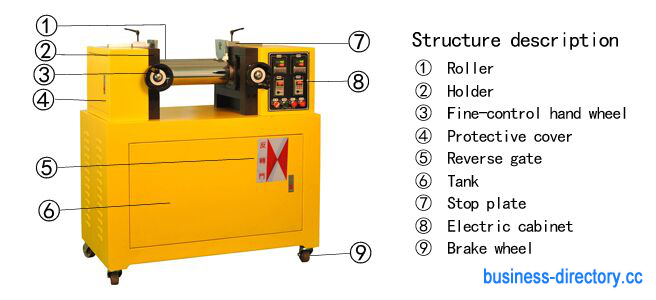

LargeThe main function of this machine is to ensure your products’ quality and colors meet exactly the demand of your clients’; afterwards the experimental results and the right proportion can be applied to production lines. This machine is capable of mixing raw materials and accessory ingredients evenly for testing.
Technical Parameters
Ø Mixing Capacity: 0.1-1kg
Ø Temperature: Room Temperature-300degree centigrade
Ø Roller Dimension: ф<120mm>×L350mm(Or customized)
Ø Rollers Gap: 0.1-5mm Adjustable
Ø Display Mode: Digital Display
Ø Roller Speed Ratio: Adjustable (Roller speed ratio and Roller rotation speed frequency conversion can be manually adjusted)
Ø Roller Rotation Speed: 0-30r/min (double-frequency modulators)
Ø Friction range: limitless speed change, you can adjust the speed to any point within 0-30r/min
Ø Roller Surface Treatment: Chrome-plated with high rigidity,and mirror polishing process.
Ø Hardness: 55-60HRC
Ø Material of the rollers: Chromium molybdenum vanadium steel
Ø Temperature controller: RKC from Japan
Ø Heating Mode: Electric Heating
Ø Temperature precision: ±2 degree centigrade
Ø Motor: Two 1HP Taiwan Chengbang Speed Reducing Motors
Ø Speed Governor: Two 1HP Taida VFD-M Type Frequency Converters
Ø Transmission Mode: chain wheel and chain transmission
Ø Safety Device: Reversible rollers (by kicking at the door of the machine, can add some other safety device according to your requirements)
Ø Power: 10HP
Ø Approximate Volume (W*D*H): 1000×560×1150mm
Ø Power Supply: AC380V,50Hz
Ø Weight: about 400kg
CE and ISO
Note: The main configuration is as follow:
RKC temperature controller (Japan);
Temperature sensor (Japan);
Omron relay (Japan);
Shilin contactor (Taiwan);
Yangming SSR (Taiwan);
Taiwan Taizhan heating tube;
Taida frequency converter, etc.
