Auotomatic oil-type cyclic pump

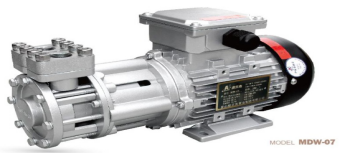

(Magnetic-driven pump with high temperature)
| FEATURE | |||||||||||
| 1.P.I.D temperature control with deviation ±0.1℃, long constant temperature time, with high efficiency and energy saving. |
|
||||||||||
| 2. Six protective functions: auto-exhaust starting up, auto-cooling shutting down, thermalcouple broken alarm, power phase shortage, out-phase protection, water-pump protection, over-heating protection and oil shortage protection etc. | |||||||||||
| 3.LCD shows the actual and set temperatures--direct and visual operations. | |||||||||||
| 4.Visual and easy operations,easy to maintain. | |||||||||||
| 5.Stainless steel tank--durable without leakage or rust. | |||||||||||
| 6.Circumfluence design enables recollection of diathermanous oil,easily and rapidly. | |||||||||||
| 7.Exquisite appearance with delicate size | |||||||||||
| SPECIFICATIONS | |||||||||||
| Model | Transter Medium | Max.Temp | Pump(KW) | Pump Flow(L/min) | Pump Flow(L/min) | Heating Power(KW) | Inlet/Outlet Diameter | Dimension(mm) | Approx.Net Weight(KG) | ||
| HJO-200506 | Heat-Transfer Oil | 200℃ | 0.37 | 33 | 22 | 6 | 3/8''x2 | 720*400*634 | 52 | ||
| HJO-201009 | 0.75 | 45 | 30 | 9 | 3/8''x4 | 720*400*634 | 57 | ||||
| HJO-201012 | 0.75 | 45 | 30 | 12 | 3/8''x4 | 720*400*634 | 57 | ||||
| HJO-202018 | 1.5 | 128 | 21 | 9*2 | 1.5''x1 | 830*370*694 | 68 | ||||
| HJO-203024 | 2.2 | 252 | 21 | 12*2 | 1.5''x1 | 990*450*1000 | 110 | ||||
| HJO-205036 | 3.75 | 308 | 22 | 12*3 | 2''x1 | 990*450*1000 | 112 | ||||
| HJO-205060 | 3.75 | 308 | 22 | 12*5 | 2''x1 | 990*450*1000 | 135 | ||||
| The voltage specification for machine is: 3，400VAC, 50Hz | |||||||||||
